Lemore exports high quality mild steel wire with high tensile strength suitable for making of steel wire ropes, hose wire, spring mattress, etc. The main grades of materials are H08A, ER50-6(E), H08Mn2SiA, H08MnA and so on.
Steel wire with low relaxation and high tensile strength:
Steel material: 82b / 77b
Standard: BS5896 GB/T5223-2002 ASTM A421 ASTM A881/A881M or customers requirement.
High Tensile Wire Diameter: 4 / 4.5 / 4.8 / 5 / 6 / 6.25 / 7 / 8 / 9 / 10 / 12mm
Tensile strength: 1470Mpa-1770Mpa
Tolerance: +/-0.05mm
Elongation: 3.5
Surface treatment: spiral ribbed / plain / indented
Packing: Export standard packing.

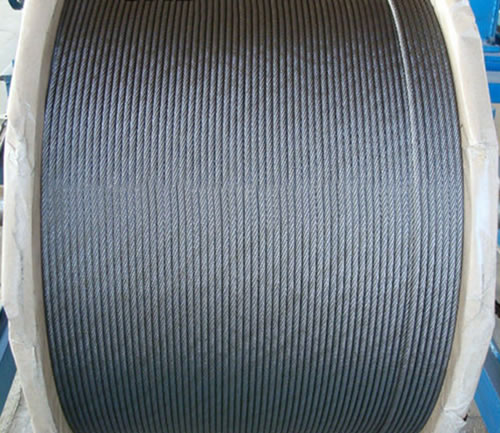

High Tensile Steel Wire Rope for Lifts or Elevators
1) Construction: 6 x 19S, 8 x 19S, 8 x 25(Fi), 6 x 25(Fi)
2) Types of rope core: fiber, sisal and steel core
3) Wire Diameter: 6-16mm
4) Wire Rope Length: 10m-2000m / reel
5) Lay: right hand regular lay or left hand regular lay
6) Material: #60. #70
7) Package: ply wooden reels, soft coil, cartons, wood case
High Tensile Steel Wire Ropes Specification Made of High Tensile Steel Wire:
STRUCTURE | DIAMETER (±5%) / mm | BREAKING STRENGTH ≥ N | LINEAR DENSITY (±5%) / (g/mm) | LENGTH (m) |
3 + 9 + 15 × 0.22 + 0.15 | 1.62 | 2700 | 8.5 | 2000 |
3 + 8 × 0.33 HT | 1.36 | 2650 | 7.48 | 2700 |
0.25 + 6 + 12 × 0.225 HT | 1.1 | 2225 | 6.05 | 3500 |
3 × 0.20 + 6 × 0.35 HT | 1.13 | 1800 | 5.34 | 3500 |
3 × 0.20 + 6 × 0.35 NT | 1.13 | 1500 | 5.34 | 3500 |
3 + 9 × 0.22 | 0.92 | 1210 | 3.62 | 5000 |
3 + 9 × 0.22 + 0.15 | 1.18 | 1210 | 3.85 | 4000 |
1 × 12 × 0.20 + 0.15 CC | 1.1 | 920 | 3.12 | 5000 |
3 + 9 + 15 × 0.175 + 0.15 | 1.34 | 1680 | 5.4 | 3100 |
3 × 0.20 + 6 × 0.38 | 1.2 | 1700 | 6.16 | 3300 |
2 + 7 × 0.28 HT | 1.06 | 1560 | 4.45 | 4300 |
2 + 2 × 0.38 | 1.01 | 1020 | 3.56 | 5000 |
2 + 2 * 0.35 HT | 0.94 | 980 | 3.03 | 6000 |
2 + 2 × 0.30 HT | 0.8 | 800 | 2.23 | 8000 |
2 + 2 × 0.28 HT | 0.73 | 710 | 1.94 | 10000 |
2 + 2 * 0.25 HT | 0.65 | 560 | 1.55 | 13000 |
3 × 0.30 HT | 0.65 | 660 | 1.68 | 10000 |
2 × 0.30 HT | 0.6 | 445 | 1.12 | 16250 |
